TM5 time trial handlebars

We offer the same time trial handlebars for your time trial or track bikes as for our AVENGER K2 Disc or TM6.

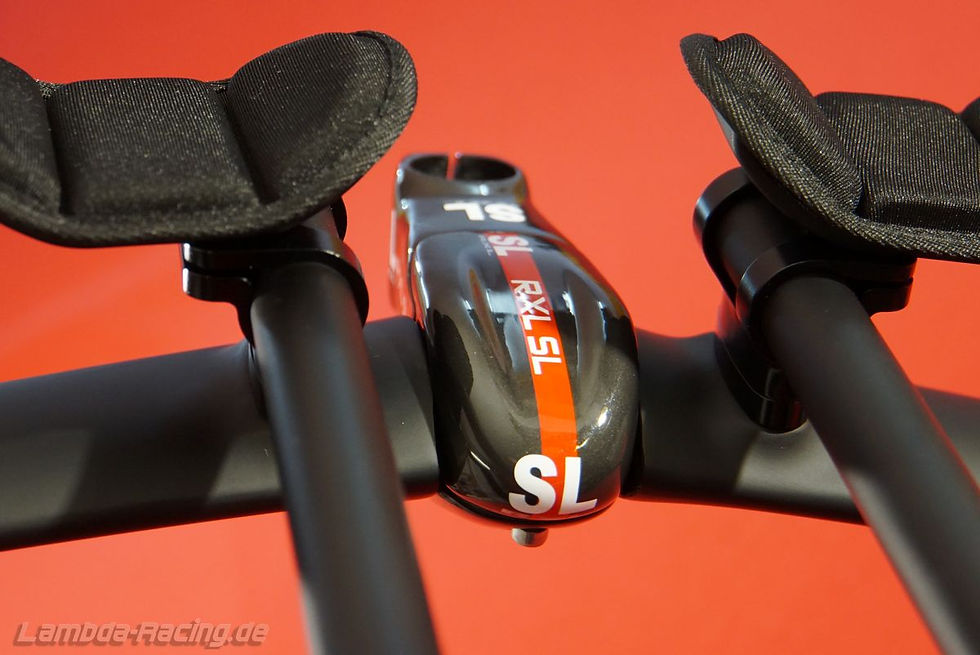

 This full-carbon time trial handlebar can be mounted on a standard or aero stem with a 31.8mm clamp diameter. The aero stem costs 90 euros (see the last two pictures).


 The two carbon fiber outriggers can be adjusted in length and, if necessary, shortened by sawing (front or back). They have a 22.2mm clamping diameter, which also allows other outriggers to be mounted.


 The forearm supports can be adjusted to four heights (0mm, 10mm, 20mm and 30mm). For greater heights (40mm, 50mm, 60mm and 70mm), additional spacers with the appropriate screws can be purchased from us (two spacers with four screws each for €20).


 The forearm supports can be moved a total of 40mm laterally and 13mm longitudinally.


 Custom-made aero armrests are also available for purchase. These cost €90. The mount for Garmin bike computers costs €12.




 The aero armrests enable a more aerodynamic riding position . The arms are held closer together without requiring any muscle effort. This is very comfortable and fatigue-free. Aero measurements with the forearms held close together show a reduction of 15-25 watts at 45 km/h.


 The additional firm support for the forearms makes the time trial bike easier to control and noticeably less susceptible to wind .



 The aero stem shown is for illustrative purposes only.
